When it comes to choosing the right caster for your equipment, one of the most critical decisions is the type of brake system you need. Casters may look simple at first glance, but a well-chosen brake can improve safety, stability, and ease of movement in any environment—from hospitals to factories to office spaces. In this article, we'll dive into two common types of caster brakes: Total Lock and Directional Lock, explain their differences, and help you understand which is best for your application.
A caster brake is a mechanism attached to a caster wheel that allows the user to control movement. Without a brake, casters roll freely, which can be dangerous or inconvenient when you need equipment to stay in place. Brakes are particularly important in settings like:
Medical equipment: hospital beds, IV stands, or surgical carts
Industrial equipment: tool carts, workbenches, machinery
Office or retail environments: display stands, mobile shelving

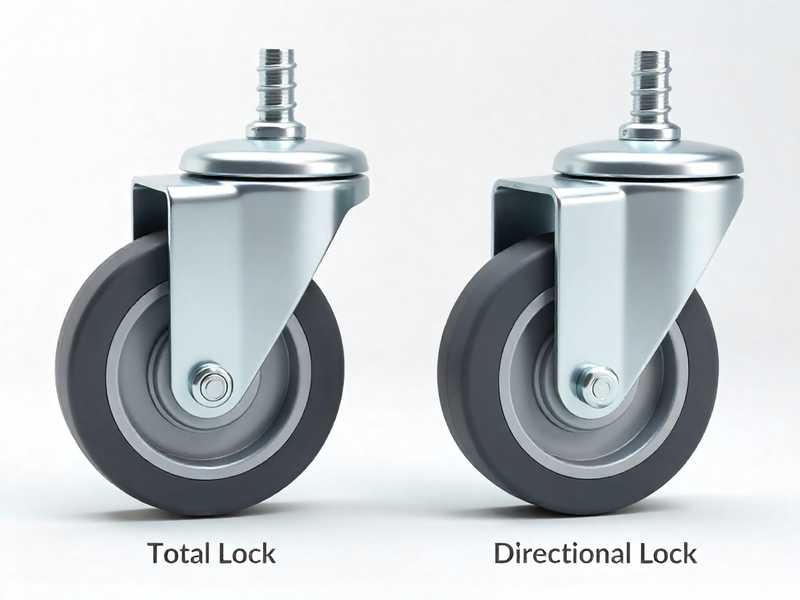

There are many types of caster brakes, but the two most widely used are Total Lock and Directional Lock.
A Total Lock brake immobilizes both the wheel and the swivel. When engaged, the wheel cannot roll, and the caster cannot swivel. Essentially, the caster becomes completely fixed in place.
Most Total Lock casters have a foot pedal that simultaneously locks the wheel rotation and the swivel rotation. Pressing the brake stops the caster from rolling in any direction and keeps the wheel pointing straight.
Maximum Stability: Total Lock provides complete immobilization. This is essential for heavy equipment or situations where safety is a top priority, such as medical beds or machinery that must stay stationary during operation.
Prevents Accidental Movement: Because both rolling and swiveling are blocked, equipment is less likely to shift even if bumped accidentally.
Simplified Positioning: Once the brake is engaged, the equipment stays exactly where you place it, reducing repositioning efforts.
Less maneuverable while moving: Total Lock must be disengaged completely to move the equipment.
Foot pedal operation: Some users may find foot-operated brakes less convenient in tight spaces.
Example Applications: hospital beds, surgical carts, heavy machinery, laboratory equipment.
A Directional Lock brake, sometimes called a wheel lock, stops the wheel from rolling but allows the caster to swivel freely. In other words, the wheel is fixed in its current orientation, but the caster can still pivot around its mounting point.
A directional lock is often activated via a lever or foot pedal. Once engaged, the wheel can't move forward or backward, but the swivel joint is free. This allows the caster to rotate 360° around the swivel while the wheel stays locked in its current direction.
Improved Maneuverability: You can still pivot the equipment without unlocking the wheel. This is especially useful in narrow corridors or when positioning items in tight spaces.
Partial Stability: While not as secure as Total Lock, a directional lock prevents the wheel from rolling unintentionally, which can be enough for lighter carts or equipment.
Ease of Engagement: Many directional locks are easy to operate and require less force to engage than full Total Lock brakes.
Not completely stationary: Since the swivel can still rotate, the equipment may shift if pushed or bumped.
Not suitable for heavy or top-heavy loads: Directional Lock is better for light- to medium-weight applications.
Example Applications: office chairs, light carts, display racks, audio/visual equipment stands.
Feature | Total Lock | Directional Lock |
Wheel Movement | Locked | Locked |
Swivel Movement | Locked | Free |
Stability | Maximum | Moderate |
Maneuverability | Low while engaged | High while engaged |
Ideal for | Heavy equipment, medical beds, machinery | Light carts, display racks, office equipment |
Safety Level | High | Medium |
Ease of Engagement | Foot pedal, sometimes heavier | Lever or pedal, lighter |
When deciding between Total Lock and Directional Lock, consider these factors:
1. Weight of Equipment
Heavy, top-heavy, or dangerous equipment → Total Lock
Light- to medium-weight items → Directional Lock
2. Usage Environment
Medical, industrial, or precision-sensitive settings → Total Lock
Offices, retail, or areas with frequent repositioning → Directional Lock
3. Mobility vs. Stability
If you need equipment to stay firmly in place → Total Lock
If you need some movement flexibility → Directional Lock
4. Safety Concerns
Any situation where accidental movement can cause injury or damage → Total Lock
Test the brakes regularly: Check for wear or malfunction, especially on frequently used equipment.
Clean the wheels and brake mechanism: Dust and debris can reduce braking efficiency.
Match the brake type to floor surface: Smooth floors may allow more accidental movement, requiring Total Lock.
Consider dual-caster systems: Some carts have a mix of Total Lock and Directional Lock casters for both stability and maneuverability.
Choosing the right caster brake system is more than just a hardware decision—it's about safety, efficiency, and ease of use. Total Lock brakes provide maximum stability and are ideal for heavy or sensitive equipment. Directional Lock brakes offer a balance between stability and maneuverability, suitable for lighter carts and flexible applications. By understanding the differences, advantages, and limitations of each brake type, you can make an informed choice for your equipment, ensuring safer and smoother operations.
